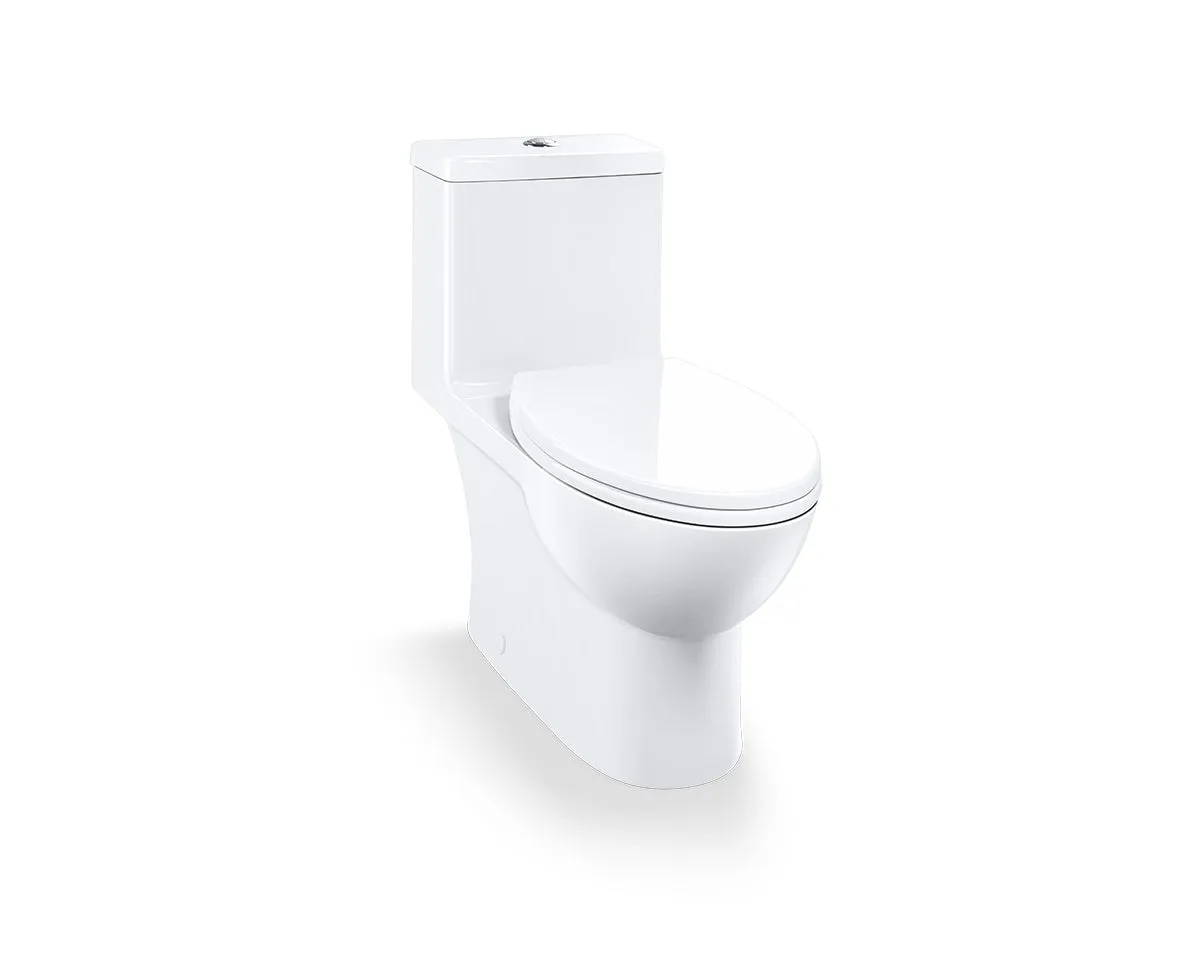

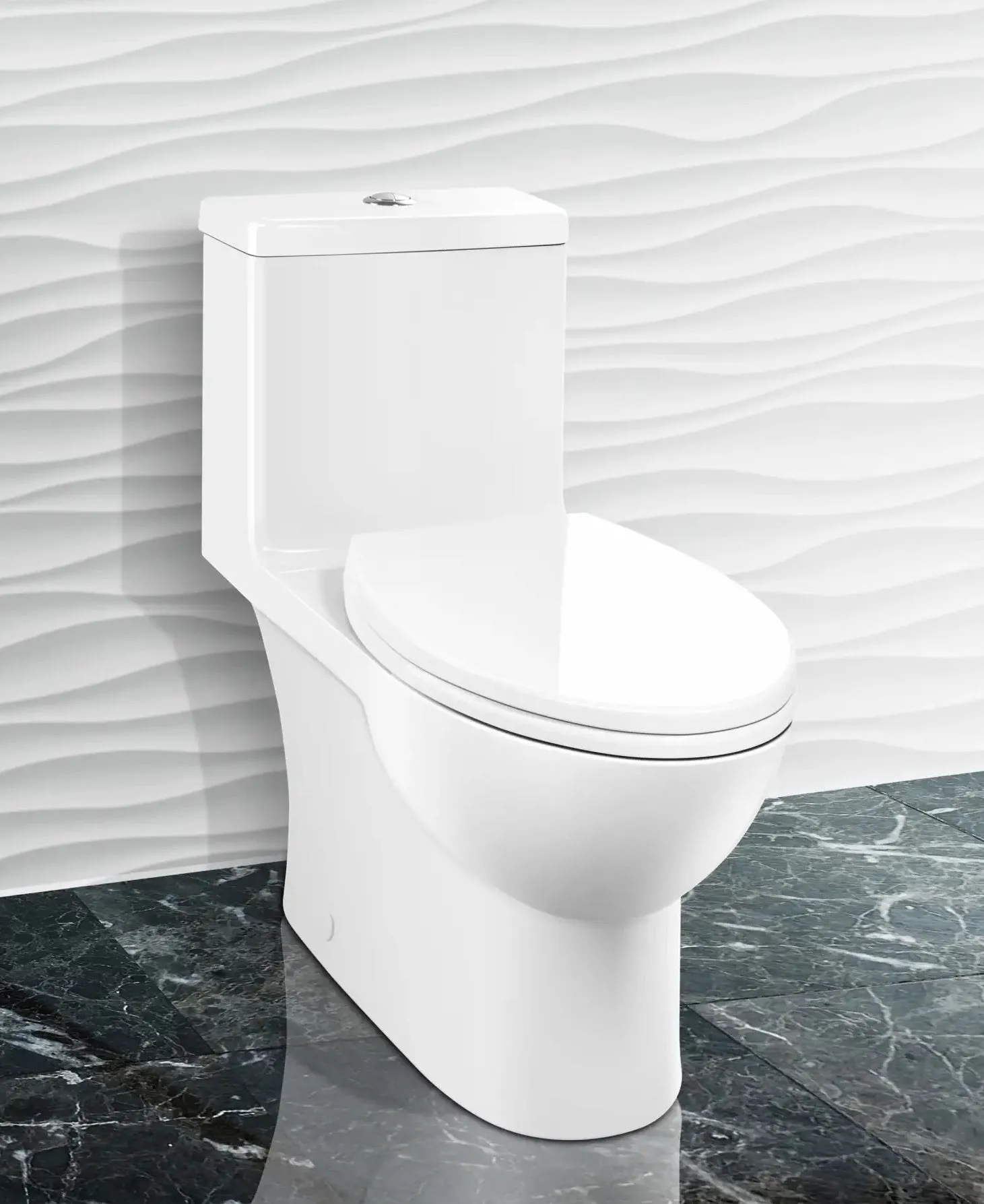

Caroma Caravelle Smart One Piece Button Flush (989900)

The Caroma Caravelle Smart One Piece (Button) Dual-Flush Toilet is an eco-friendly, cutting-edge bathroom fixture that seamlessly blends contemporary aesthetics with superior functionality. This state-of-the-art toilet incorporates a dual-flush mechanism, offering users the flexibility to select either a full or partial flush based on their requirements, thereby promoting substantial water conservation.

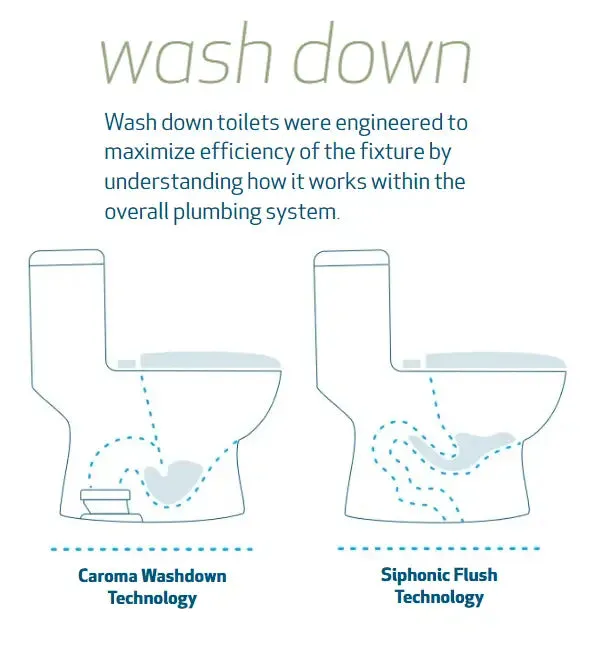

Innovative Flushing Mechanism: The Caravelle Smart (Button) employs an advanced gravity-assisted flushing system that efficiently propels waste down the drain before introducing water. This unique approach contrasts with conventional siphonic toilets and significantly reduces the likelihood of blockages in both the toilet and the connected plumbing network.

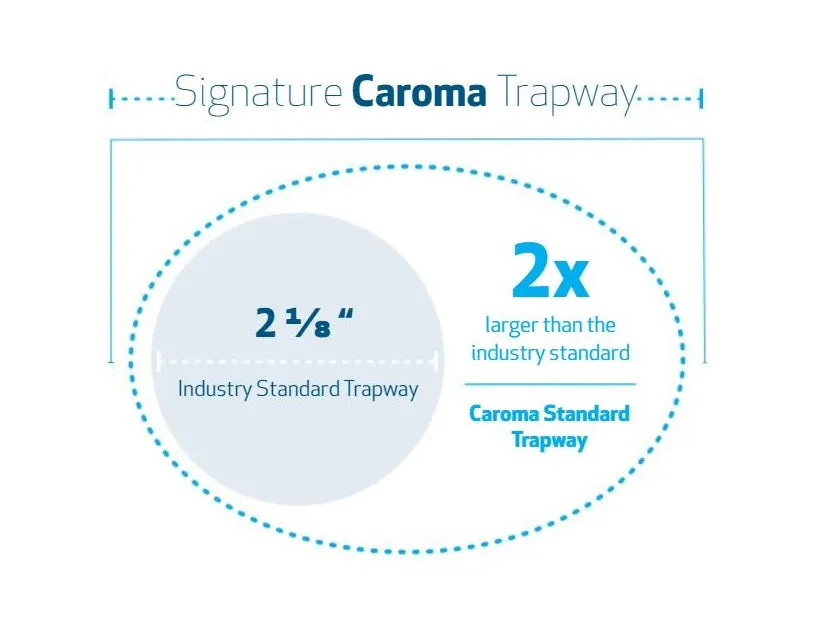

Clog-Resistant Design: Crafted for optimal performance, the Caravelle Smart (Button) boasts an enlarged trapway that's more than double the size of standard models. This ingenious design feature virtually eliminates the possibility of clogs.

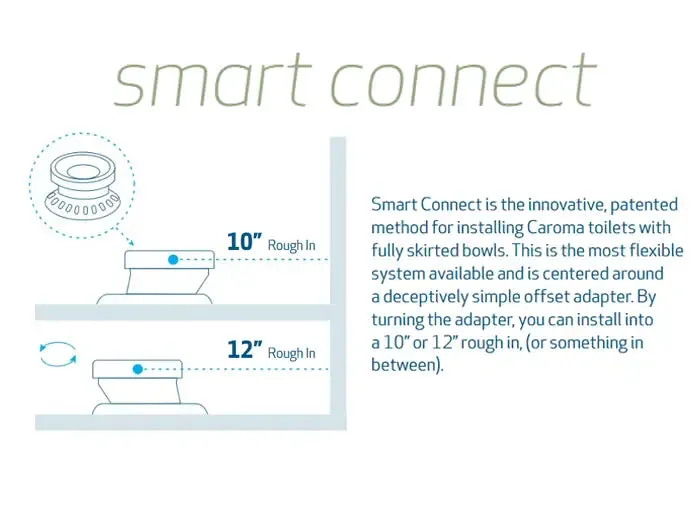

Versatile Installation: Equipped with Caroma's innovative Smart Connect technology, the Caravelle Smart (Button) offers remarkable installation flexibility. The system's adaptable offset connector accommodates rough-ins ranging from 10" to 12", or any measurement in between.

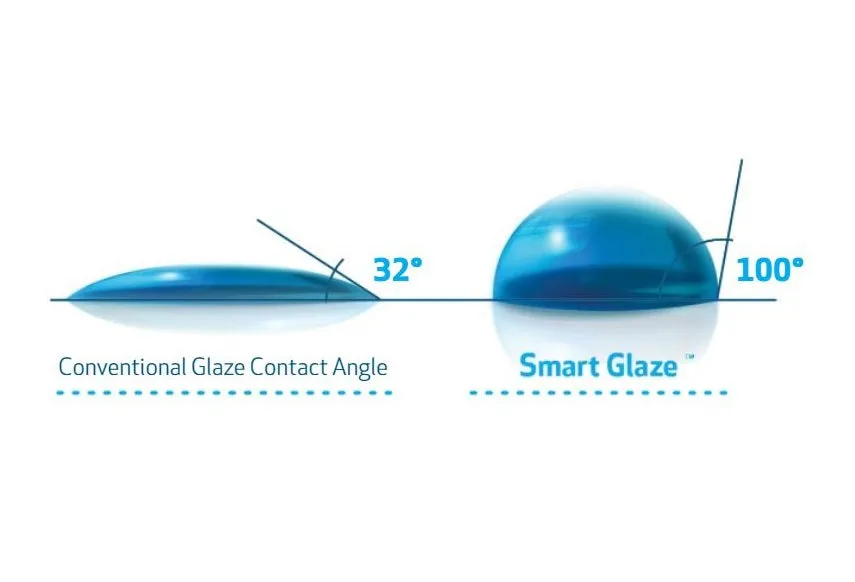

Advanced Surface Treatment: The toilet's vitreous china exterior is enhanced with cutting-edge nanotechnology, creating a surface that resists liquids and oils while impeding bacterial growth. This Smart Glaze treatment ensures the Caravelle Smart (Button) remains effortlessly clean and hygienic.

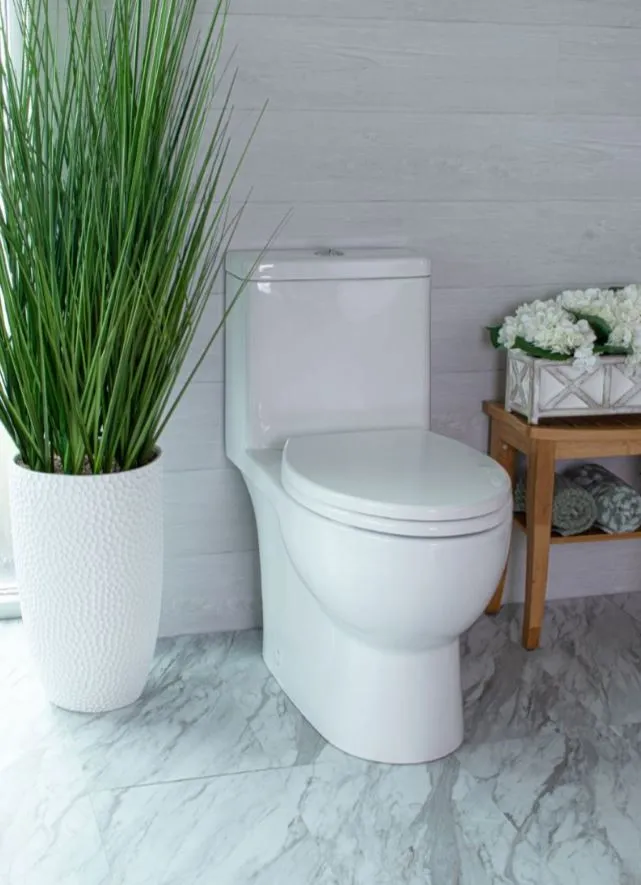

As the top-of-line model for Caroma dual-flush toilets, the Caravelle Smart One Piece  delivers superior comfort and complies with ADA standards. Its seamless one-piece construction contributes to a refined, contemporary look that enhances a wide range of bathroom decors.

Installation Guidelines

1. Floor Flange Preparation: Verify that the closet flange is correctly positioned, as this is essential for a proper installation.
2. Offset Adapter Installation: Place the wax ring and bolts, then attach the Caroma offset adapter securely to the floor flange.
3. Toilet Preparation: Apply a continuous bead of silicone caulk along the base of the toilet.
4. Toilet Positioning: Carefully align the bowl over the offset adapter and gently lower it into place, ensuring even distribution.
5. Toilet Securing: Utilize appropriate fasteners to anchor the closet bowl through the designated holes at the rear of the toilet base.

Additional Considerations

Water Connection: Attach the toilet to the water supply line using standard plumbing fittings.

Level Adjustment: Confirm that the toilet is perfectly level on the floor, employing shims if necessary for proper alignment.

Spatial Requirements: Ensure sufficient space around the toilet for comfortable usage and ease of cleaning.

Button Mechanism Installation

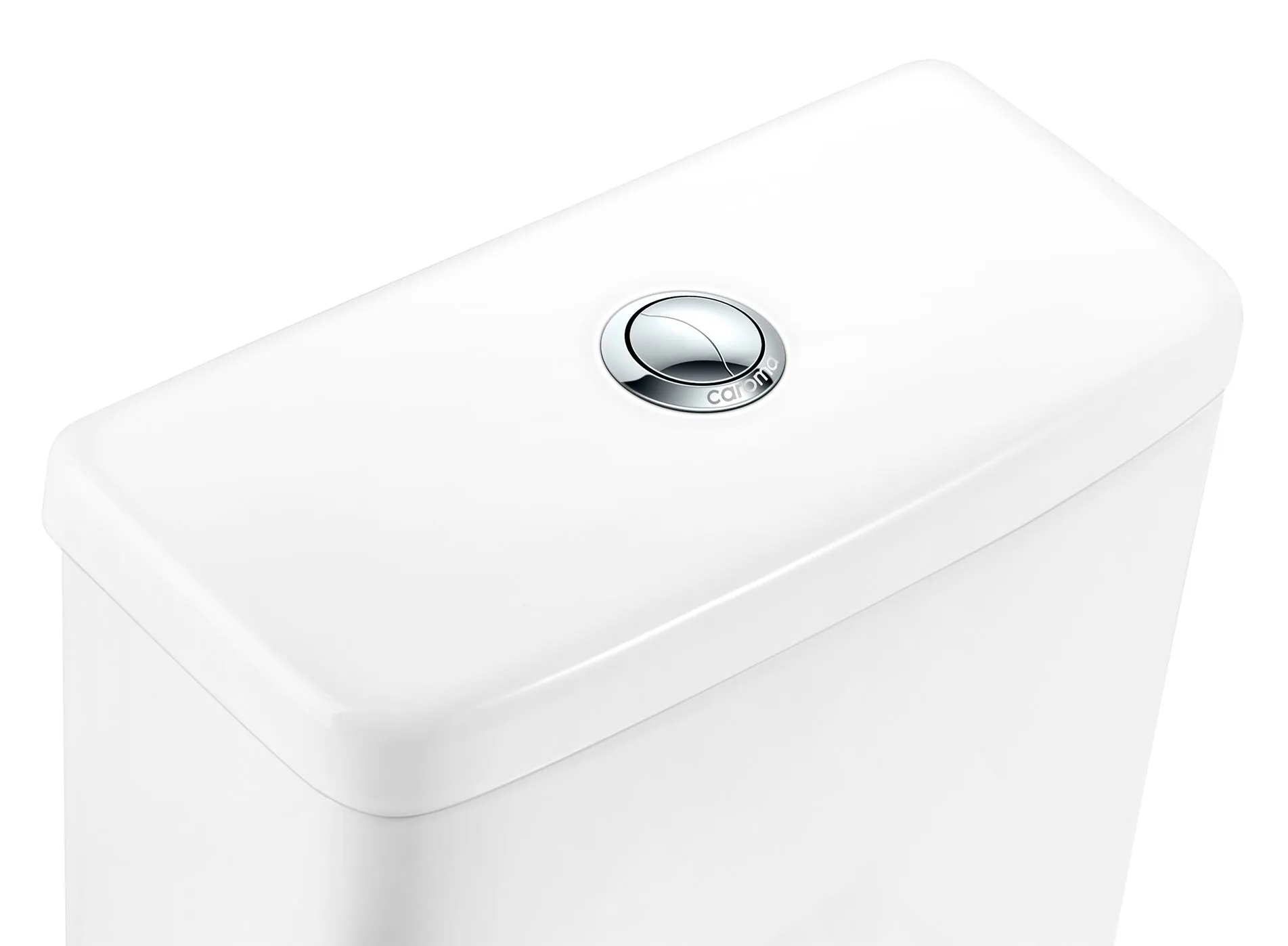

The Caravelle Smart One Piece (Button) features a top-mounted dual-flush button. For button mechanism maintenance or replacement:

1. Remove the tank lid carefully.
2. Disconnect the button mechanism from the flush valve.
3. Insert the new button mechanism, ensuring proper alignment with the flush valve.
4. Secure the mechanism according to the manufacturer's instructions.
5. Test the flush function before replacing the tank lid.

It is crucial to refer to the comprehensive installation manual provided by Caroma and consider professional installation if you are uncertain about any aspect of the process. Correct installation is key to ensuring the optimal performance and water efficiency of your Caroma Caravelle Smart One Piece (Button) Dual-Flush Toilet.

Watch helpful videos on Caroma one-piece toilets

Warranty

2-Year Limited Warranty

See Full Warranty Page

For California Residents

California Proposition 65

Specifications Overview

• Part number: 989900
• Flush System: Dual flush with 1.28/0.8 gallons per flush (4.8/3 liters per flush)
• Flush Activation: Top-mounted dual-flush button (large button for full flush, small button for half flush)
• Bowl Type: One-piece, elongated
• Weight: 103 lbs (47.0 kg)
• Seat Height Range: ADA compliant between 17” and 19“ (432 to 482mm) to bowl
• Rough-in Install: Adjustable for 10" to 12" (255mm to 305mm)
• MaP Rating: Premium certified at 1000 grams


Dimensions

• Length: 19-15/16" (760mm)
• Width: 14-1/8" (360mm)
• Typical Seat Height: 18" (455mm)
• Total Height: 30-3/8" (770mm) approximately

Design Features

• Smart Glaze: Nano-technology coating for easier cleaning and improved hygiene
• Skirted Design: Fully concealed trapway for a sleek appearance and easier cleaning
• Seat: Includes 326611W Soft Close-Detachable Seat
• Button Position: Centrally located on top of the tank lid

Additional Resources

• Technical Specs

• What's In The Box
• Parts and Accessories
• Installation Guide
